Students learn to model arithmetic expressions with a visual tool for Order of Operations, known as "Circles of Evaluation".

Lesson Goals

Students will be able to:

  • Model an arithmetic expression using Circles of Evaluation.

  • Translate Circles of Evaluation into code.

Student-facing Goals

  • I can write Circles of Evaluation for a given arithmetic expression.

  • I can translate a Circle of Evaluation model into code.

  • I can use numbers and operations in a programming environment.

Materials

Preparation

  • Make sure all materials have been gathered

Key Points For The Facilitator

  • Error messages are the computer trying to give us a clue that something is wrong. Model reacting to error messages with interest to demonstrate to students that the messages are a helpful tool.

  • After the first few exercises in creating Circles of Evaluation, ask students whether they create them from the 'inside-out' (drawing the inner circles first) or from the 'outside-in.' After they’ve given their responses, have them try using the OTHER way!

  • Up until now, we didn’t have a visual spatial model for reading arithmetic expressions. Ask students to compare Circles of Evaluation to previous methods they’ve learned for computing these expressions (PEMDAS, GEMDAS, etc)

  • For a memory hook, model the "bug that crawls through the circle" explanation.

  • Students may benefit from using multiple colors to distinguish between the different smaller expressions and parentheses.

Click here to see the prior unit-based version.

Glossary
circle of evaluation

a 'sentence diagram' of the structure of a mathematical expression

error message

information from the computer about errors in code

expression

a computation written in the rules of some language (such as arithmetic, code, or a Circle of Evaluation)

function

a mathematical object that consumes inputs and produces an output

🔗Order of Operations 30 minutes

Overview

Students are given a challenging expression that exposes common misconceptions about order of operations. The goal is to demonstrate that a brittle, fixed notion of order of operations is insufficient, and lead students to a deeper understanding of order of operations as a grammatical device. The Circles of Evaluation are introduced as "sentence diagramming for arithmetic".

Launch

Humans use verbs like "throw", "run", "build" and "jump" to describe operations on nouns like "ball", "puppy", and "blocks". Mathematics has "operations" and functions, like addition and subtraction. Just as you can "throw a ball", a person can also "add four and five".

A mathematical expression is an instruction for doing something, which specifies the verbs and nouns involved. The expression 4 + 5 tells us to add 4 and 5. To evaluate an expression, we follow the instructions. The expression 4 + 5 evaluates to 9.

If you were to write instructions for getting ready for school, it would matter very much which instruction came first: putting on your socks, putting on your shoes, etc. Sometimes we need multiple expressions in mathematics, and the order matters there, too!

🖼Show image Mathematicians didn’t always agree on the order of operations, but at some point it became important to develop rules to help them work together.

The pyramid on the right is a model for summarizing the order of operations. When evaluating an expression, we begin by applying the operations written at the top of the pyramid (operations in parentheses and other grouping symbols). Only after we have completed all of those operations can we move down to the lower level. If both operations from the same level are present (as in 4 + 2 - 1), we read the expression from left to right, applying the operations in the order in which they appear. This set of rules is brittle, and doesn’t always make it clear what we need to do. Mnemonic devices for the order of operations like PEMDAS, GEMDAS, etc focus on how to get the answer. What we need is a better way to read math.

Check out the expression below. What do you think the answer is? This math problem went viral on social media recently, with math teachers arguing about what the answer was! Why might they disagree on the solution?

6 ÷ 2(1 + 2)

Instead of using a rule for computing answers, let’s start by diagramming the math itself!

Circles of Evaluation

The Circles of Evaluation are a critical pedagogical tool in this course. They place the focus on the structure of mathematical expressions, as a means of combating the harmful student belief that the only thing that matters is the answer. They can be used to diagram arithmetic sentences to expose common misconceptions about Order of Operations, and make an excellent scaffold for tracing mistakes when a student applies the Order of Operations incorrectly. They are also a bridge representation, which naturally connects to function composition and converting arithmetic into code.

We can draw the structure of this grammar in mathematics using something called the Circles of Evaluation. The rules are simple:

1) Every Circle must have one - and only one! - function, written at the top.

That means that Numbers (e.g. - 3, -29, 77.01…​) are still written by themselves. It’s only when we want to do something like add, subtract, etc. that we need to draw a Circle.

2) The inputs to the function are written left-to-right, in the middle of the Circle.

If we want to draw the Circle of Evaluation for 6 ÷ 3, the division function (/) is written at the top, with the 6 on the left and the 3 on the right.

/
63
(/ 6 3)

What if we want to use multiple functions? How would we draw the Circle of Evaluation for 6 ÷ 1 + 2? Drawing the Circle of Evaluation for the 1 + 2 is easy. But how do we take the result of that circle, and divide 6 by it?

Circles can contain other Circles

We basically replace the 3 from our earlier Circle of Evaluation with another Circle, which adds 1 and 2!

/
6
+
12
(/ 6 (+ 1 2))

What would the Circle of Evaluation for 5 × 6 look like?

*
56
(* 5 6)

How about the Circle of Evaluation for (10 - 5) × 6?

*
-
105
6
(* (- 10 5) 6)

Aside from helping us catch mistakes before they happen, Circles of Evaluation are also a useful way to think about transformation in mathematics. For example, you may have heard that "addition is commutative, so a + b can always be written as b + a." For example, 1 + 2 can be transformed to 2 + 1.

Suppose another student tells you that 1 + 2 × 3 can be rewritten as 2 + 1 × 3. This is obviously wrong, but why?

Take a moment to think: what’s the problem? We can use the Circles of Evaluation to figure it out!

The first Circle is just the original expression. The second expression represents what the (incorrect) commutativity transformation gives us:

+
1
*
23
(+ 1 (* 2 3))

?

+
2
*
13
(+ 2 (* 1 3))

In this case, the student failed to see the structure, viewing the term to the right of the + sign as 2 instead of 2 × 3. The Circles of Evaluation help us see the structure of the expression, rather than forcing us to construct it and keep it in our heads.

Investigate

Have students turn to Translate Arithmetic to Circles of Evaluation & Code (Intro) (Page 9) in the student workbook and draw Circles of Evaluation for each of the expressions. (Ignore the code column for now! We will come back to it later.)

Pedagogy Note

Circles of Evaluation are a great way to get older students to reengage with (and finally understand) the order of operations while their focus and motivation are on learning to code. Because we recognize this work to be so foundational, and know that some teachers choose to spend a whole week on it, we have developed lots of additional materials to help scaffold and stretch. You will find some additional pages in the workbook and over 20 more linked in the Additional Exercises section at the the end of this lesson.

Synthesize

  • Did some students prefer working outside-in to inside-out? Why?

  • Did some students find that different strategies worked better for different kinds of problems? Why or why not?

  • Is there more than one way to draw the Circle for 1 + 2? If so, is one way more "correct" than the other?

🔗From Circles of Evaluation to Code

Overview

Students learn how to use the Circles of Evaluation to translate arithmetic expressions into code.

Launch

When converting a Circle of Evaluation to code, it’s useful to imagine a spider crawling through the circle from the left and exiting on the right. The first thing the spider does is cross over a curved line (an open parenthesis!), then visit the operation - also called the function - at the top. After that, she crawls from left to right, visiting each of the inputs to the function. Finally, she has to leave the circle by crossing another curved line (a close parenthesis).

Expression

3 + 8

Circle of Evaluation

+
38
(+ 3 8)

Code

(+ 3 8)

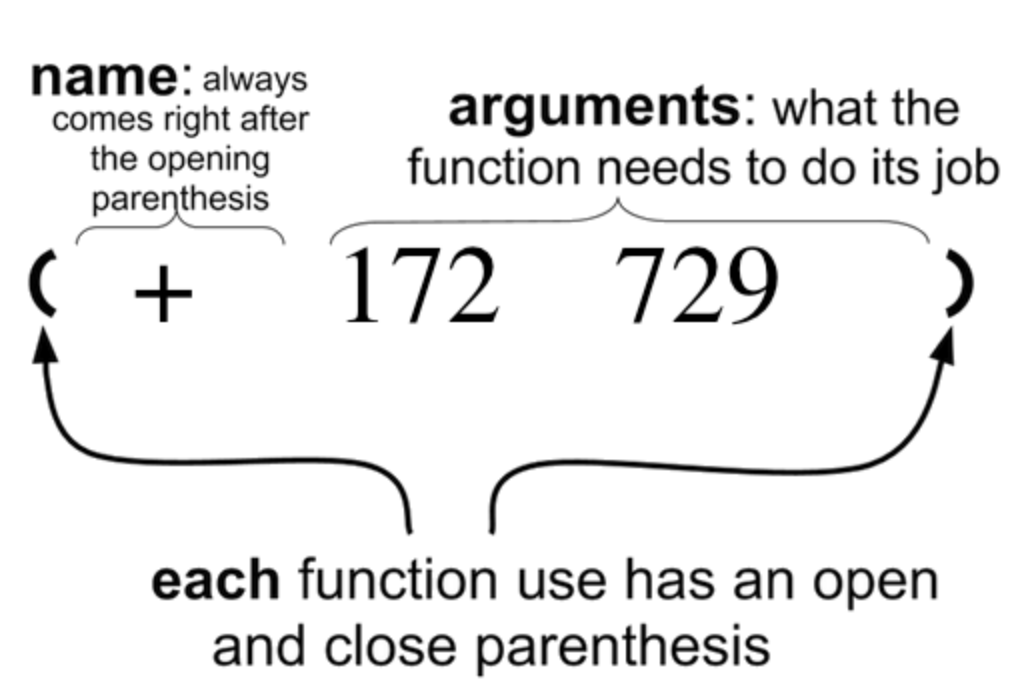

All of the expressions that follow the function name are called arguments to the function. The following diagram summarizes the shape of an expression that uses a function. Diagram of a WeScheme Expression Diagram of a WeScheme Expression🖼Show image

Arithmetic expressions involving more than one operation, will end up with more than one circle, and more than one pair of parentheses.

Expression

2 × ( 3 + 8 )

Circle of Evaluation

*
2
+
38
(* 2 (+ 3 8))

Code

(* 2 (+ 3 8))

  • Why are there two closing parentheses in a row, at the end of the code?

  • If an expression has three sets of parentheses, how many Circles of Evaluation do you expect to need?

What would the code look like for these circles?

/
6
+
12
(/ 6 (+ 1 2))

*
-
105
6
(* (- 10 5) 6)

(/ 6 (+ 1 2))

(* (- 10 5) 6)

Investigate

If you have time, start with the two pages in the student workbook that scaffold translating circles to code: Completing Partial Code from Circles of Evaluation (Page 10) and Matching Circles of Evaluation & Code (Page 11).

Now that we know how to translate Circles of Evaluation into Code, turn back to Translate Arithmetic to Circles of Evaluation & Code (Intro) (Page 9).

Before you have students complete the code for this page, make sure they have drawn their circles correctly! You may want to have them compare their circles with a partner and another pair of partners or you may want to post an answer key.

Once you confirm that your code is correct, continue on to Translate Arithmetic to Circles of Evaluation & Code 2 (Page 12)

(The previous workbook page scaffolded students' in translating expression to code with extra parentheses. Those scaffolds drop away on this page.)

If time allows, take turns entering the code into the editor with your partner.

We have included one page of more complex problems in the student workbook so that you’re ready to challenge students who fly Arithmetic Expressions to Circles of Evaluation & Code - Challenge (Page 13).

Note: If you want to practice making Circles of Evaluation with exponents and square roots, we use sqrt as the name of the square root function, and sqr as the function that squares its input.

Strategies For English Language Learners

MLR 7 - Compare and Connect: Gather students' graphic organizers to highlight and analyze a few of them as a class, asking students to compare and connect different representations.

Synthesize

Have students share back what they learned from the Circles of Evaluation.

🔗Testing out your Code optional

Overview

Circles of Evaluation are a powerful tool that can be used without ever getting students on computers. If you have time to introduce students to the wescheme editor, typing their code into the interactions area gives students a chance to get feedback on their use of parentheses as well as the satisfaction of seeing their code successfully evaluate the expressions they’ve generated.

Launch

  • Open WeScheme and click run.

  • For now, we are only going to be working in the interactions area on the right hand side of your screen.

  • Type (+ (* 8 2) (/ 6 3)) into the interactions area.

  • Notice how the editor highlights pairs of parentheses to help you confirm that you have closed each pair.

  • Hit Enter (or Return) to evaluate this expression. What happens? If you typed the code correctly you’ll get 18. If you make a mistake with your typing, the computer should help you identify your mistake so that you can correct it and try it again!

  • Take a few minutes to go back and test each line of code you wrote on the pages you’ve completed by typing them into the Interactions Area. Use the error messages to help you identify any missing characters and edit your code to get it working.

Investigate

Here are two Circles of Evaluation.

*
10-4
(* 10 -4)

text
"Good work!"50"red"
(text "Good work!" 50 "red")

One of them is familiar, but the other is very different from what you’ve been working with. What’s different about the Circle on the right?

Possible responses:

  • We’ve never seen the function text before

  • We’ve never seen words used in a Circle of Evaluation before

  • We’ve never seen a function take in three inputs

  • We’ve never seen a function take in a mix of Numbers and words

  • Can you figure out the Name for the function in the second Circle? This is a chance to look for and make use of structure in deciphering a novel expression! We know the name of the function is text, because that’s what is at the top of the circle.

  • What do you think this expression will evaluate to?

  • Convert this Circle to code and try it out!

  • What does the 50 mean to the computer? Try replacing it with different values, and see what you get.

  • What does the "blue" mean to the computer? Try replacing it with different values, and see what you get.

Here is another circle to explore.

string-length
"fun!"
(string-length "fun!")

  • What do you think this expression will evaluate to?

  • Convert this Circle to code and try it out!

Synthesize

Now that we understand the structure of Circles of Evaluation, we can use them to write code for any function!

🔗Additional Exercises

If you are digging into Order or Operations and are looking for more practice with Circles of Evaluation before introducing code, we have lots of options!

More practice connecting Circles of Evaluation to Code

More 3-column practice connecting Arithmetic Expressions with Circles of Evaluation and Code:

More 3-column practice with negatives:

More 3-column practice with square roots:

3-column challenge problems with brackets and exponents:
