Students define row-consuming functions and combine them with advanced display contracts to create compelling data displays. This project supports the learning goals of Advanced Displays.

Lesson Goals

Students will be able to…​

  • explain how visual cues can enhance a display

  • consider how adding a third variable to a display can offer new insights

Student-facing Lesson Goals

  • Let’s use creativity and code to meaningfully visualize data.

Materials

Key Points for the Facilitator

🔗Beautiful Data Project flexible

Students advance their programming skills by using code to add their own flair and style to data that matters to them.

Launch

Data visualization is where data science and creativity mix. Data displays are meant to tell a story, and storytelling is an art form!

Take a moment to explore the resources below, and choose one display that really interests you:

Allow students ample time to check out the provided resources. You might consider inviting a few students to share their reflections on the varying displays.

We recommend printing and distributing the student-facing Rubric: Beautiful Data to help students understand the scope of the project and your expectations at the outset. Teachers are welcome and encouraged to edit and adapt the rubric for their unique classroom context.

Respond to the questions in the first section of Beautiful Data: Reflect and Plan.

Today, you’re going to get a chance to create your own customized data visualization - one that connects artistic expression to data in ways that are relevant and meaningful.

The first step is to find your data!

Investigate

Once students have created a basic display, things start to get interesting!

Age v. Weeks Scatter PlotAge v. Weeks Scatter Plot - The scatter plot on the right suggests a moderate correlation between age and weeks: older animals take longer to be adopted…​ - But it’s not as direct a connection as others might think! It’s time to get curious, and ask ourselves: - What data is missing?

Age v. Weeks Scatter PlotAge v. Weeks Scatter Plot

We might wonder:

  • whether the species matters

  • how big the animal is

  • whether or not the animal is fixed

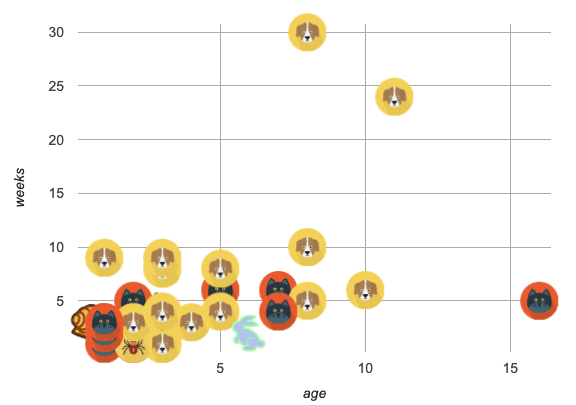

Age v. Weeks Scatter Plot, with pictures showing the species of each animalAge v. Weeks Scatter Plot, labeled by species Once we wrote code to add the species column to our data display by customizing the dots, we saw some interesting results!

Right away, we could see that cats and dogs take longer to be adopted based on their age, but the impact of each extra year is much smaller for cats than for dogs. It’s almost like we have two stronger correlations in the same display: the line for dogs slopes up more steeply, and the line for cats is more gentle. When all the dots looked the same, these lines blurred each other out to create one weak-to-moderate correlation.

Specify how you would like students to submit Pyret files. Email, a form, or any platform that allows students to share links (i.e., Google Classroom or Schoology) will work.

  • Think about at least two columns that might give you more insight into your data, and why those other columns matter in the display(s) you’ve chosen.

  • In your code.pyret.org (CPO), define a row-consuming function that produces custom images for each Row in your dataset using your new column(s).

  • Use that row-consuming function to create a data display that makes the data pop and really shows the deeper patterns at work.

Synthesize

  • Encourage students to self-assess and revise their work. Peer review is a powerful tool if time allows! The rubric is a useful resource for facilitating both self and peer review.

  • Finally, celebrate students' work! In many instances, students will want to share their project, given how much time they have invested. Class or public presentations can instill a sense of pride.
