Lesson Goals

Students will be able to…​

  • define functions that consume rows and produce meaningful images

  • use helper functions to define custom pie and bar-charts, histograms, and scatter plots

Student-facing Lesson Goals

  • Let’s explore new Pyret functions that let us make more interesting plots

Materials

Supplemental Materials

Relevant Resources

  • For those with time to spare, this 23-minute video from Stand-up Maths analyzes 4, 678, 387 NBA shots to see what they can learn about 3-point shots over time. You’ll see a wide range of advanced displays, including 3-dimensional graphs overlayed on the basketball court! (Note: The displays presented in this video are beyond what is possible in Pyret.)

🔗Processing Rows with Functions 20 minutes

Overview

This section motivates the combination of function definition and column lookups, applying algebraic thinking to Data Science. Students review the concepts of column lookups and function definition by writing functions that consume rows and use the value of one column to create an image.

Launch

Age v. Weeks Scatter Plot, with pictures showing the species of each animalAge v. Weeks Scatter Plot, labeled by species

This is a scatter plot of the animals dataset, showing the age on the x-axis and the weeks spent at the shelter on the y-axis.

  • What is different about this plot, from ones you’ve seen before?

    • Sample responses: More colorful, prettier, pictures of animals, etc.

Age v. Weeks Scatter Plot, with pictures showing the species of each animalAge v. Weeks Scatter Plot, labeled by species

This scatter plot isn’t just prettier - it’s also more useful! Scatter plots typically only show two variables from each Row in the Table (the x and y), but this plot is showing us three.

  • What is the third column being visualized here?

    • species

To dig deeper into your data, sometimes you need to see more than 2 variables at once! By processing each Row separately, we can make use of all the columns we want to draw beautiful, creative, and insightful data displays. In this lesson, you’ll learn how to do just that.

But how do we process each Row separately?

  • You’ve learned how to take a complex value like a Row, and lookup a column. We could write a line of code that does that for every Row in the table…​ but that would take a long time and would result in a LOT of code!

  • You’ve also seen how to define functions that consume simple values, and do all the repetitive work for us.

Let’s put those two concepts together, and define functions that consume Rows!

Investigate

  • Turn to age-dot, and complete the top half of the page (questions 1 and 2).

  • Compare your answers to some other students'. If you each wrote down different answers, talk about what’s different and what’s the same.

Review student answers. Every student should have the same code for this part!

  • You could imagine doing this for every animal in the shelter, but that would be a lot of very repetitive work. This is exactly what functions are made for!

  • Open your saved Animals Starter File (or start a new one), and type the Contract, Examples, and Definition for age-dot into the Definitions Area.

  • Click "Run", and make sure your examples pass. Then try using your new function on some of the other Rows defined there, like lizard-row and cat-row.

Review the Contract, Examples and Definition with students, making sure to point out the connections between each representation!

  • Turn to species-tag, and complete the top half of the page (questions 1 and 2).

  • When you are confident with the code you have written - check with your teacher or a partner - complete the rest of the page to define a function species-tag.

  • In your Animals Starter File, type the Contract, Examples, and Definition for species-tag into the Definitions Area.

  • Click "Run", and make sure your examples pass. Then try using your new function on some of the other Rows defined there, like dog-row and cat-row.

Synthesize

  • One of the functions we wrote used the age column, and the other used the species column. One is a Number and the other is a String, so why did both functions consume Rows?

    • What a function consumes is not the same as the work the function does. Both functions consumed Rows, but one function looked up the age column - a Number - and the other looked up the species column - a String.

  • How is this similar to the other functions you’ve defined, like gt and bc? How is it different?

    • It’s similar in that it makes images based on numeric data, from the one argument in its Domain. But instead of that argument being a Number, it’s a Row that contains a Number. So instead of using that input verbatim, the function needs to use a lookup to get that Number out of the Row.

🔗Image Scatter Plots 15 minutes

Overview

Students are introduced to image-scatter-plot, which consumes a function and uses it to draw custom images in place of dots. Image scatter plots offer deeper insight into subgroups within a population, motivating students to define their own functions and deepen their analysis.

CS or Programming teachers take note: image-scatter-plot is an example of a higher order function, or a function that consumes another function as its input. Curiosity and creativity combine to motivate more advanced programming.

Launch

  • Do you think an animal’s weight affects how long it stays at the shelter? Why or why not?

    • Many apartment buildings have limits on how heavy a pet can be, which could make bigger animals harder to adopt.

If we’re looking for a relationship between two variables, we know that we need a scatter plot!
Let’s start out by making a scatter plot to look for a relationship between Pounds and Weeks.

Pounds v. Weeks Scatter Plot

There seems to be a positive relationship, but it’s not very strong.

  • What other factors might influence how quickly an animal is adopted?

    • Invite students to share their ideas and explain their rationale. Possible responses: Maybe fixed animals are adopted more quickly. Maybe some species are adopted more quickly. Maybe age plays a role…​

Let’s say we want to consider the influence of age on how how quickly an animal is adopted - while simultaneously considering the relationship between pounds and weeks to adoption. Fortunately, there’s a way to do this…​ custom scatter plots!

Investigate

Discuss as a class, or in small groups. See explanation, below, of the image-scatter-plot Contract.

The Contract for image-scatter-plot looks pretty different from other Contracts we’ve seen.

# image-scatter-plot :: (Tablet, Stringxs, Stringys, (Row -> Image)f) -> Image

This Domain is interesting: Table, String, String and…​a Function that consumes a Row and produces an Image!

What do you think the resulting custom scatter plot will look like? You may want to refer back to age-dot.

Complete questions 8, 9, and 10 on Exploring Image Scatter Plots to see the scatter plot that will be generated and then experiment with modifying its code.

Students will see the image below:

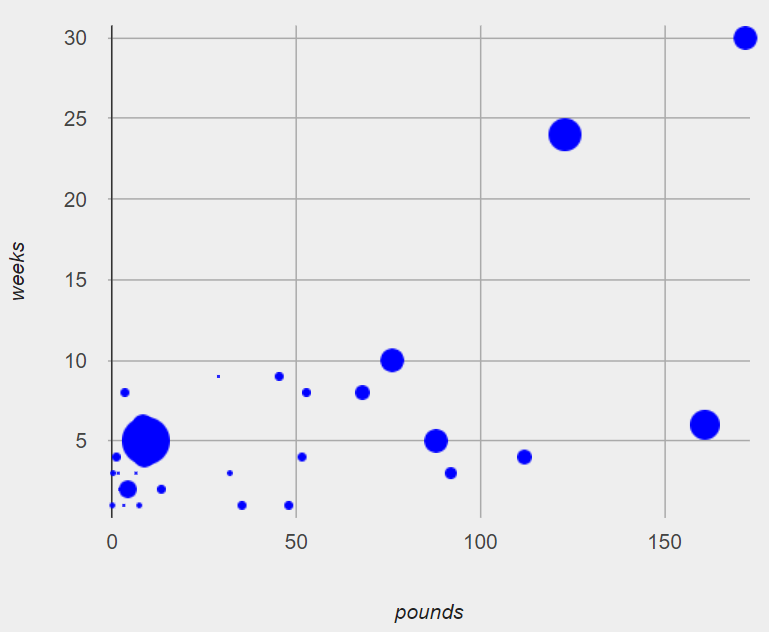

A scatter plot with the age for each animal represented by the size of its corresponding blue dot. The blue dot images are generated by the age-dot functionPounds v. Weeks, showing the age of each animal

Complete the bottom section of the page on Understanding Custom Displays.

  • How did having the dots labeled with the species change your understanding of the data?

    • The species-tag scatter plot (below) makes it clear that we may want to analyze each species separately, rather than grouping them all together. (In the Grouped Samples lesson, students will learn how to do just that!)

A scatter plot with species names for each animal in place of a small, uniform dot. The images are generated by the species-tag function

Custom Colors!

We’ve created a special function called make-color, which allows students to mix their own colors!

# make-color :: (Numberred, Numbergreen, Numberblue, Numberopacity) -> Color

  • Use Numbers between 0 and 255 to specify how much red, green, and blue to mix

  • Use Numbers between 0-1 to specify percent opacity (0 for invisible, 1 for full color)

For example, star(50, "solid", make-color(100, 200, 0, 0.5))
will generate a pale green star that’s 50% transparent.

By using row accessors to extract these values from their dataset, students can make custom scatter plots where each data point is represented by a shape whose color indicates something about the data!

We could, for example, represent the Animals using the following code: star(50, "solid", make-color(100, 0, r["pounds"], 0.5))

  • Which representation would be used for the heaviest animal: a red star, a purple star or a blue star?

    • Lightest would be red and heaviest would be blue, with purple landing in between!

Synthesize

  • What other ways could we use the columns in each row of the Animals Table to pack more information into our scatter plots?

    • Use legs and age to determine width and height of a rectangle

    • Use different colors or shapes based on species, sex, or fixed-status

  • How are the charts produced by image-scatter-plot different from those produced by scatter-plot? Why do these differences exist? (Think about their Contracts!)

    • image-scatter-plot consumes a function that can draw different dots depending on each Row in the dataset, along with information about which columns contain the x- and y-coordinates. In contrast, scatter-plot because it only consumes information about where the dots are drawn, and not how they are drawn.

  • How might image-scatter-plot be useful to your own analysis?

🔗Piecewise/Conditional Functions 15 minutes

Overview

Students discover how to use conditionals - piecewise functions in math - to create more complex scatter plots, and also custom bar charts, pie charts, and histograms. Experimentation becomes the motivation for more practice with Row-consuming functions.

NOTE: Math teachers may want their students to confront piecewise functions more deeply, and CS teachers may want to spend more time on conditionals. While not specifically a Data Science lesson, the Piecewise Functions and Conditionals lesson includes a lot of supporting material and practice pages for these topics, with greater emphasis on the math connections.

Launch

So far, we’ve seen that…​

  • the scatter-plot function makes uniform blue dots

  • the image-scatter-plot function can label each point with a custom image, computed by a helper function that consumes a Row and produces an Image

How could we use different color dots for each species? Or perhaps draw different shapes depending on whether an animal was fixed or not?

This requires a more powerful kind of function, known in math as a piecewise function because it has more than one "piece". In programming, these are often called "conditional" functions, because each piece is used depending on which condition is met.

Investigate

  • What did the function produce for a dog Row?

    • A black square

  • What did the function produce for a cat Row?

    • An orange square

  • What happened when you took away the condition for snails?

    • An error

Piecewise functions are extremely powerful, allowing us to specify different rules for different inputs. But with great power comes great responsibility: if an input has no rule, the function will be undefined for that input! You’ve seen undefined behavior before, where division fails if the second input is zero. Removing the condition for snails, for example, created undefined behavior for all rows where the species is "snail".

CS/Programming teachers may find this to be a useful place to teach about else:, which is a catch-all rule for "any input that we don’t already have a condition for". But beware! Teaching kids to use else: without considering the input is a really bad programming habit!

Error messages tell us when something goes wrong. In the case of the animals starter file, we have a fixed, predefined number of species. Adding an else clause will prevent us from seeing any errors if there’s a typo in one of the conditions, if an unexpected animal gets added to the dataset, etc. In situations like this, good programming practice demands a condition for each species, and no else clause.

Optional: When your conditional is already a Boolean

If you have time or students who are ready for a challenge, you can also have them make a scatter plot with dots distinguishing whether the animal is fixed or not using Word Problem: fixed-dot. Students will discover that this is a little different from the other two functions they’ve seen because fixed is already a Boolean column!

The following two functions do the same thing. Notice how much cleaner the second example is!

Checking the Boolean
fun fixed-dot(r):
  if      (r["fixed"] == true) : circle(5, "solid", "green")
  else if (r["fixed"] == false): circle(5, "solid", "black")
  end
end
Using the Boolean Directly
fun fixed-dot(r):
  if r["fixed"]: circle(5, "solid", "green")
  else:          circle(5, "solid", "black")
  end
end

For students who are really into graphics: To take their data displays to the next level, have them check out Animal Images Starter File and Animal Image - Explore.

For students who are really ready for a programming challenge: have them open Dots for Value Ranges Starter File and complete Dots for Value Ranges - Explore.

Pyret allows us to create advanced displays for several types of charts!

# image-scatter-plot :: Table, String, String, (Row -> Image) -> Image # image-histogram :: Table, String, Number, (Row -> Image) -> Image # image-bar-chart :: Table, String, (Row -> Image) -> Image # image-pie-chart :: Table, String, (Row -> Image) -> Image

Optional Project: Beautiful Data

Data Visualization is a growing and fascinating field. It’s about more than making charts look cool - it’s about connecting artistic expression to data in ways that are relevant and meaningful. Project: Beautiful Data gives students a chance to advance their programming skills by using code to add their own flair and style to data that matters to them.

Synthesize

  • How do piecewise functions expand what is possible for displaying data?

  • How could you see this power being used to help express complex relationships?
