(Also available in WeScheme)

Students apply their knowledge of piecewise functions to write a function that will move the player in their game in different directions and at different speeds depending on which key is pressed.

Lesson Goals

Students will be able to:

  • Apply previous knowledge of piecewise functions to a new problem situation.

Student-Facing Lesson Goals

  • I can write a function using conditionals to move my player.


Key Points for the Facilitator

  • Encourage students to challenge themselves when creating update-player by completing one of the extension activities.

  • The update-player function is one of the main places where students can set their game apart and make it theirs. Encourage exploration and experimentation!

  • Adding comments to code - if you have to ask a student "What are you trying to do there?", then they probably need more comments!


messages in the code, generally ignored by the computer, to help people interacting with the code understand what it is doing

compound inequality

an inequality that combines two simple inequalities using and or or


a statement of the name, domain, and range of a function


to find and fix errors in one’s code


a relation from a set of inputs to a set of possible outputs, where each input is related to exactly one output

piecewise function

a function that computes different expressions based on its input

🔗Defining Piecewise Functions 30 minutes


Students define a piecewise function. This is a challenging task, which is motivated by introducing key events in their video game.


Have students sign in to (CPO) and open their saved game starter files.

You’ve already defined functions to move your DANGER and TARGET. Take a moment to look at your code or workbook, and refresh your memory on how they work.

  • What controlled the speed of your characters?

  • What controlled the direction of your characters?

If we wanted our PLAYER to go up all the time, we would already know how to do that. If we wanted our PLAYER to go down all the time, we would already know how to do that. But we want the player to go up only when the "up" arrow is pressed, and down only when the "down" arrow is pressed. Do we know how to make a function behave differently, based on its input?


Direct students to open their saved Game Project files. Tell them to look for update player. Lead a discussion by posing the following questions.

Strategies for English Language Learners

MLR 6 - Three Reads: Have students read through the problem statement three times, looking for different information. What is the problem asking me? What is the contract for this function? What information do I need to create that function?

  • What is the contract for update-player?

    • The Name is update-player, the Domain consists of two Numbers and a String, and the Range is a Number.

  • What does each part of the domain and range represent?

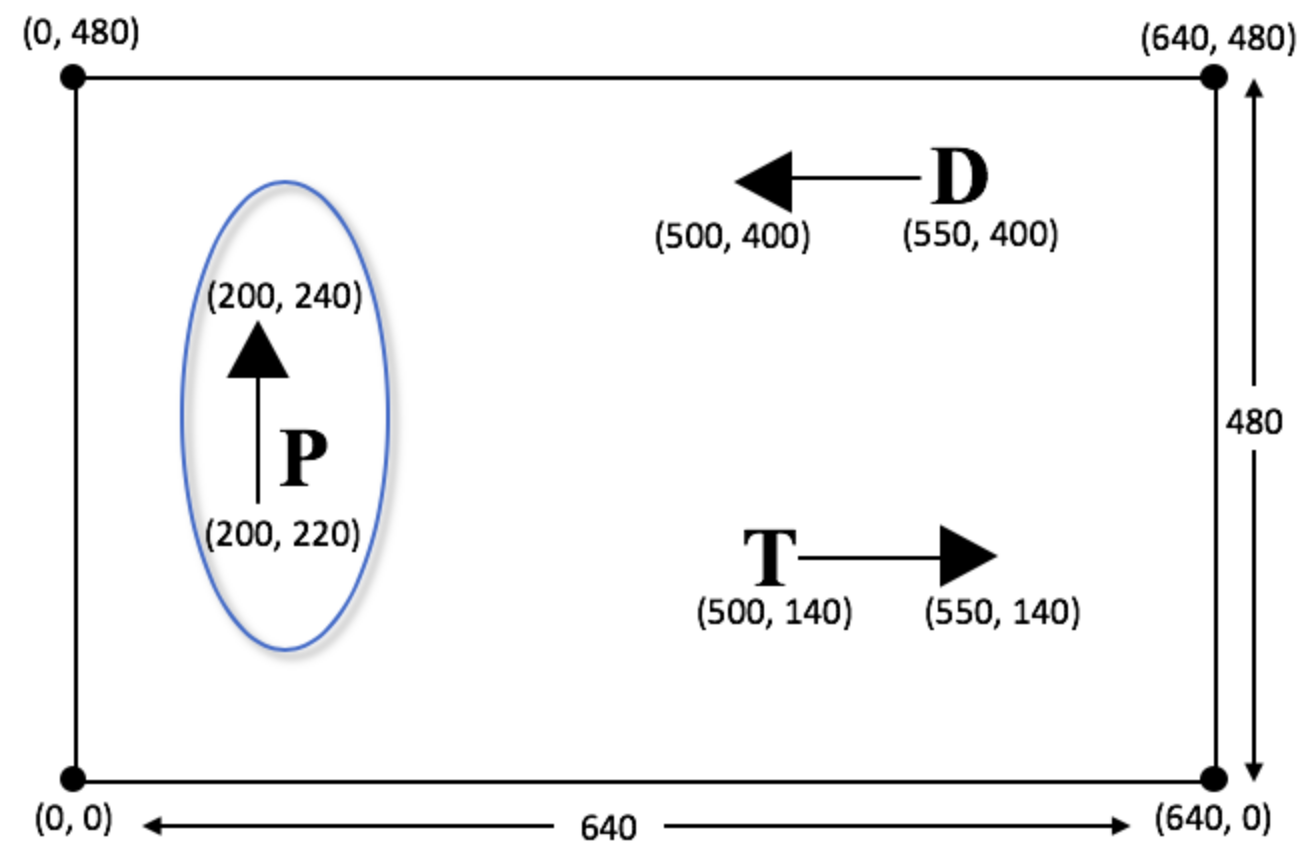

    • Domain: the Numbers are the x-coordinate and the y-coordinate of PLAYER when the key is pressed, the String is the key that the user pressed; Range: the Number is the new y-coordinate of PLAYER.

  • How does the y-coordinate of PLAYER change when the user presses the "up" key?

    • It should increase, the program should add something to it.

2-D Game Movement

If your students have their games working and you are ready to support them in delving into the Posn datatype that will support 2-d movement in the game, the first step is to complete Challenge: Character Movement in Two Dimensions and Challenge: Character Movement in Two Dimensions (continued). Once they’ve gotten their danger moving diagonally, they’re ready to build upon their understanding of Posn and piecewise functions to tackle Challenge: update-player-2.

Common Misconceptions

  • Students often think of this function as returning a relative distance (e.g. "it adds 20"), instead of an absolute coordinate (e.g. "the new y-coordinate is the old y plus 20")


  • How is this function similar to the piecewise functions you’ve seen before? How is it different?

  • How could we change this function so that the "W" key makes the player go up, instead of the arrow key?

  • How could we change this function so that the "W" key makes the player go up, in addition to the arrow key?

  • Suppose your little brother or sister walks by and hits a random key. What should happen if you hit a random key that doesn’t have a meaning in your function? What happens now?

🔗Cheat Codes and Customizations flexible


Students choose one or more features to make their game more unique. These features can be quite simple, such as adding another key that does the same thing that "up" or "down" does. But they can also be extremely sophisticated, requiring students to exploit properties of the number line in conjunction with function composition and compound inequalities!


Right now, all of your games allow the player to move up and down at a constant speed. But what if we wanted to add a special key that made the player warp to the top of the screen, or move down twice as fast? What if we wanted the player to wrap, so going off one side of the screen would make it re-appear on the other?


Complete at least one of the Challenges for update-player before turning to your computer to customize your game.

Some possible features students might include are:

  • Warping - program one key to "warp" the player to a set location, such as the center of the screen

  • Boundaries - change update-player such that PLAYER cannot move off the top or bottom of the screen

  • Wrapping - add code to update-player such that when PLAYER moves to the top of the screen, it reappears at the bottom, and vice versa

  • Hiding - add a key that will make PLAYER seem to disappear, and reappear when the same key is pressed again

Reminder: Use # to add comments to code!

Adding useful comments to code is an important part of programming. It lets us leave messages for other programmers, leave notes for ourselves, or "turn off" pieces of code that we don’t want or need to debug later.


Have students share back what they implemented. Sharing solutions is encouraged!

What would it take to make the player move left and right? Why can’t we do this without changing the contract?

Pedagogy Note

It’s likely that once they hear other students' ideas, they will want more time to try them out. If time allows, give students additional slices of "hacking time", bringing them back to share each other’s ideas and solutions before sending them off to program some more. This dramatically ramps up the creativity and engagement in the classroom, giving better results than having one long stretch of programming time.
