(Also available in Pyret)
Students learn to read function notation and evaluate expressions using function definitions, tables, and graphs.
Lesson Goals
Students will be able to:

StudentFacing Lesson Goals

Materials
This lesson is unplugged and does not require a computer.
 apply

use a given function on some inputs
 coordinate plane

a grid formed by a pair of intersecting horizontal and vertical number lines
 evaluate

perform the computation in an expression, producing an answer
 function

a relation from a set of inputs to a set of possible outputs, where each input is related to exactly one output
 function notation

a standard way to denote functions, beginning with a function name, such as f or gt, the variable(s) the function takes in, such as x or size, and a definition of what the function does using a formula in terms of the variable. For example, f(x) = x + 1 takes in a number and adds 1.
 line

an infinite collection of points forming a straight onedimensional figure having no thickness and extending infinitely in both directions
 substitute

replace a variable with a value or expression and evaluate or simplify the resulting expression
 variable

a name or symbol that stands for some value or expression, often a value or expression that changes
🔗Function Notation (Definitions) 15 minutes
Overview
Students connect their understanding of function definitions in Wescheme to function definitions in math.
Launch
We’ve seen how functions like gt
can be defined, and then applied to a number to create a green triangle. And once gt
is defined, we can use it with many different numbers to create many different triangles  all without having to write out "solid"
, "green"
, etc.
But how does this function work?
When we apply a function to some inputs, we substitute those inputs for the variables in the definition. In the example below, the inputs are substituted for the variable size
in the body of the gt
function.
(define (gt size) (triangle size "solid" "green"))
Apply the Function  Substitute the Input(s)  Compute the Answer















Let’s take a look at a function that works with Numbers:
(define (f x) (+ x 8))
Apply the Function  Substitute the Input(s)  Compute the Answer

f10

18
f20

28
f30

38
f40

48
f50

58
Once again, the input is substituted for the variable.
You’ve already seen that Wescheme looks a little different from traditional math, even if it behaves the same way.
Math books use something called Function Notation to define functions. Here’s a sidebyside comparison of the same function, in our programming language and in function notation:
Defining Functions in Wescheme  Defining Functions in Function Notation


fx = x + 8

What do these forms have in common?

Both forms show the name of the function, as well as the names of the variables. They also show what the function does with those variables.


How are these forms different from one another?

In Pyret, we use a colon instead of an equals sign. In Pyret, we see
fun
at the beginning andend
at the end.

In math  just as in programming  we compute the value of the expression for any specific input by substituting numbers for the variable(s) used in the definition, just as we did with gt
.
fx = x + 8
Apply the Function  Substitute the Input(s)  Compute the Answer

f10
10 + 8
18
f20
20 + 8
28
f30
30 + 8
38
f40
40 + 8
48
f50
50 + 8
58
Investigate

Turn to Matching Examples and Definitions (Math) and Function Notation  Substitution.

Start by looking at each table and highlighting what is changing from the first row to the following rows.

Then, match each table to the function that defines it.
You may also want to have students complete Matching Examples & Function Definitions (Math) (Desmos)
Synthesize
You can think of f3 as a question.

What question is it asking you to evaluate?

What is the value of x + 8 when x is 3?


What is another way you can ask it?

What is 3 + 8?

🔗Function Notation (Graphs) 15 minutes
Overview
Students will learn to connect function definitions to Graphs.
Launch

If fx = x  5, what is the value of f7, and why?

2. Because if we substitute 7 for x we get 7  5 = 2


What is the value of f8?

3. Because if we substitute 8 for x we get 8  5 = 2


What is the value of f9?

4

For each of these inputs, we have an output. If we graph each inputoutput pair on the coordinate plane, we can "see" the function as a line on a graph.

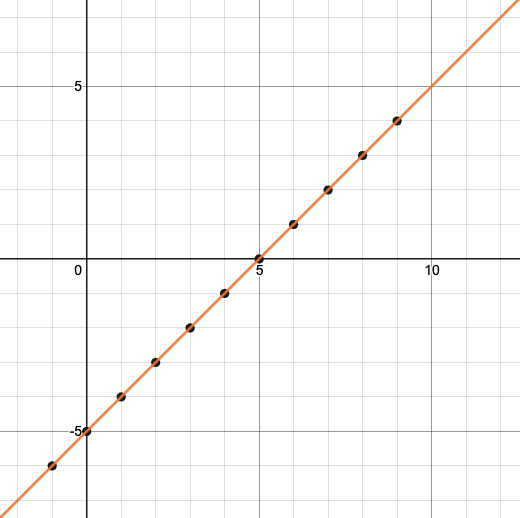

Let’s take a look at the graph of fx = x  5.

How could we have determined that f7 = 2 from looking at the graph, if we hadn’t started with the function definition?

We could have looked for a point whose ycoordinate was 2. This would lead us to the point (7, 2), which tells us that the output of the function when x is 7 is 2.


From looking at the graph, what is the value of f3?

2


What other values on this graph could we describe using function notation?

Answers will vary. For example: f0 = 5 or f0.5 = 4.5

Even if we can’t see the definition of a function, we can reason about it just by looking at the graph!
Let’s look at the graph below, which shows only a few points on the line drawn by a function:

From looking at the graph, what is the value of f2?

4


What is the value of f1?

2


What is the value of f3?

There isn’t one! It’s undefined.


What other values on this graph could we describe using function notation?

Answers will vary. For example, f1 = 4 or f2 = 4

Optional: Piecewise Functions When evaluating an expression for a piecewise function, points on the graph marked with hollow circles are boundary points, but not part of the solution set, so we ignore them and focus on the solid points. For example, on the graph below, when evaluating f2, we ignore the hollow point at (2, 4) and focus on the solid point at 2,3, so f2 = 3.

Investigate

Complete Function Notation  Graphs.

If you’re ready for a challenge (piecewise functions!), try out Function Notation  Piecewise Graphs.
Synthesize

Can you think of any values that it would be difficult to determine from one of these graphs?

It would be hard to be precise for many of the points on the graphs that curve. For example, f4 on the second graph would have to be a decimal value and it’s hard to know exactly what the decimal should be without a function definition to evaluate…

🔗Function Notation (Tables) 15 minutes
Overview
Students will learn to connect function definitions to inputoutput Tables.
Launch

Let’s take a look at a table of inputoutput pairs that satisfy the function fx = x  5, and think about how could we have determined the value of f7 from looking at the table.

We would just look for 7 in the xcolumn and see that the value beside it is 2.


Looking at the table, what is the value of f10?

15

x
10
5
5
7
13
y
15
10
0
2
8
Investigate
Complete Function Notation  Tables.
Synthesize

What did you Notice?

What did you Wonder?

A few of the tables did not represent functions. Which ones?

The last one in the top row, the last one in the middle row and the 3rd one in the bottom row.


How did the fact that those tables weren’t functions impact our ability to describe a value using function notation?

When x appeared more than once in the table and was associated with different outputs, it wasn’t clear what number the expression should evaluate to.
