Using what they know from Bootstrap:Algebra, students write a distance function and collision detection function to handle collisions in their games, this time using the Data Structures and Reactor from their games.

Prerequisites

None

Product Outcomes

Students add collision-detection to their games

Materials

Pens/pencils for the students, fresh whiteboard markers for teachers
Class poster (List of rules, design recipe, course calendar)
Editing environment (Pyret Editor)
Student workbooks
Cutouts of Cat and Dog images

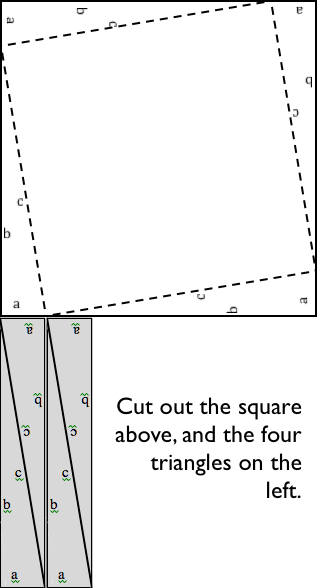

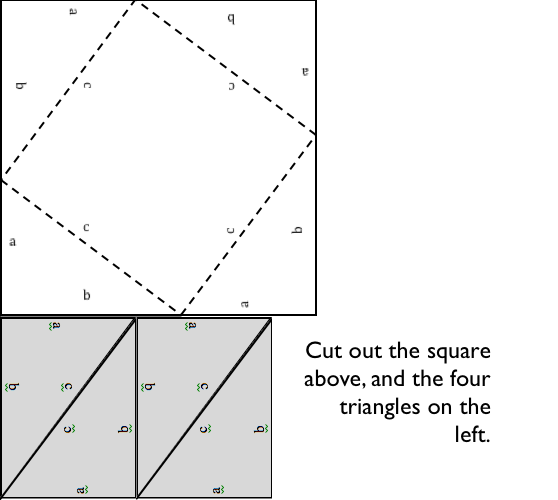

Cutouts of Pythagorean Theorem packets [1, 2 — 1 per cluster
Student Games or the Pyret Ninja Cat Starter file preloaded on students’ machines

Language Table

Types

Functions

Values

Number

num-sqrt, num-sqr

4, -1.2, 2/3

String

string-repeat, string-contains

"hello", "91"

Boolean

==, <, <=, >=, string-equal

true, false


triangle, circle, star, rectangle, ellipse, square, text, overlay

🔵🔺🔶

Glossary

helper function: a small function that handles a specific part of another computation, and gets called from other functions
hypotenuse: the side opposite the 90-degree angle in a right triangle

🔗The Distance Formula 30 minutes

Overview

Students implement the distance formula, to prepare for collision detection in their games.

Launch

So far, none of the animations we’ve created included any distance or collision-detection functions. However, if you want to make a game where the player has to hit a target, avoid an enemy, jump onto platforms, or reach a specific part of the screen, we’ll need to account for collisions. This is going to require a little math, but luckily it’s exactly the same as it was in Bootstrap:Algebra.

🖼Show image

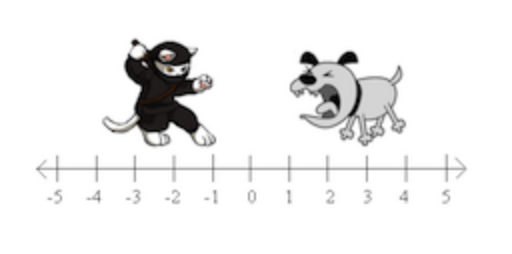

In the image above, how far apart are the cat and dog?
If the cat was moved one space to the right, how far apart would they be?
What if the cat and dog switched positions?

Finding the distance in one dimesion is pretty easy: if the characters are on the same number line, we subtract the smaller coordinate from the larger one, and we have our distance.

When the cat and dog were switched, did you still subtract the dog’s position from the cat’s, or subtract the cat’s position from the dog’s? Why?

Unfortunately, most distances aren’t only measured in one dimension. We’ll need some code to calculate the distance between two points in two dimensions.

🖼Show image

Investigate

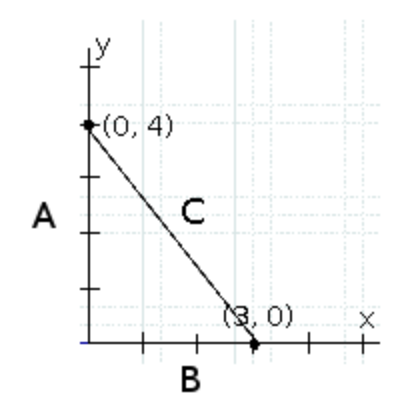

How could you find the distance between the two points shown in this image?
How could you find the length of the C, also called the Hypotenuse?

Let’s start with what we do know: if we treat the x- and y-intercepts of C as lines A and B, we have a right triangle.

What is the line-length of A? Would it be different if the triangle pointed downward, and intercepted the point (0, −4)?

Ancient civilizations had the same problem: they also struggled to find the distance between points in two dimensions. Let’s work through a way to think about this problem: what expression computes the length of the hypotenuse of a right triangle?

🖼Show image

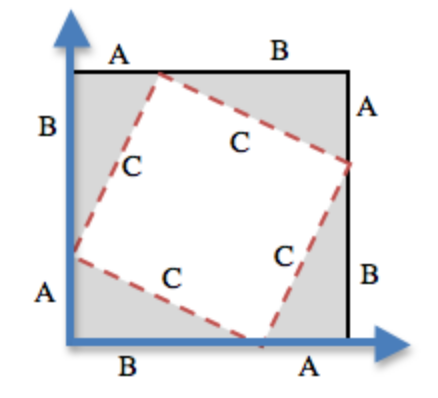

For any right triangle, it is possible to draw a picture where the hypotenuse is used for all four sides of a square. In the diagram shown here, the white square is surrounded by four gray, identical right-triangles, each with sides $\displaystyle A$ and $\displaystyle B$ . The square itself has four identical sides of length $\displaystyle C$ , which are the hypotenuses for the triangles. If the area of a square is expressed by side ∗ side, then the area of the white space is $\displaystyle C^2$ .

By moving the gray triangles, it is possible to create two rectangles that fit inside the original square. While the space taken up by the triangles has shifted, it hasn’t gotten any bigger or smaller. Likewise, the white space has been broken into two smaller squares, but in total it remains the same size. By using the side-lengths $\displaystyle A$ and $\displaystyle B$ , one can calculate the area of the two squares.

What is the area of the smaller square? The larger square?


The smaller square has an area of $\displaystyle A^2$ , and the larger square has an area of $\displaystyle B^2$ . Since these squares are just the original square broken up into two pieces, we know that the sum of these areas must be equal to the area of the original square:

$\displaystyle A^2 + B^2 = C^2$

Does the same equation work for any values of $\displaystyle A$ and $\displaystyle B$ ?

To get C by itself, we take the square-root of the sum of the areas:

$\displaystyle \sqrt{A^2 + B^2} = C$

Pythagoras proved that you can get the square of the hypotenuse by adding the squares of the other two sides. In your games, you’re going to use the horizontal and vertical distance between two characters as the two sides of your triangle, and use the Pythagorean theorem to find the length of that third side.

Remind students that $\displaystyle A$ and $\displaystyle B$ are the horizontal and vertical lengths, which are calculated by line-length.

Turn to Page 45 of your workbook - you’ll see the formula written out.
Draw out the circle of evaluation, starting with the simplest expression you can see first.
Once you have the circle of evaluation, translate it into Pyret code at the bottom of the page, starting with
```
check:
  distance(4, 2, 0, 5) is...
end
```

Now you’ve got code that tells you the distance between the points (4, 2) and (0, 5). But we want to have it work for any two points. It would be great if we had a function that would just take the x’s and y’s as input, and do the math for us.

Turn to Page 46, and read the problem statement and function header carefully.
Use the Design Recipe to write your distance function. Feel free to use the work from the previous page as your first example, and then come up with a new one of your own.
When finished, type your distance functions into your game, and see what happens.
Does anything happen when things run into each other?

You still need a function to check whether or not two things are colliding.

Watch Out!

Pay careful attention to the order in which the coordinates are given to the distance function. The player’s x-coordinate (px) must be given first, followed by the player’s y (py), character’s x (cx), and character’s y (cy). Just like with making data structures, order matters, and the distance function will not work otherwise. Also be sure to check that students are using num-sqr and num-sqrt in the correct places.

🔗Collision Detection 30 minutes

Overview

Students implement a simple Boolean-producing function, which composes with the distance function they implemented.

Launch

So what do we want to do with this distance?

How close should your danger and your player be, before they hit each other?

At the top of Page 47 you’ll find the Word Problem for is-collision.

Fill in the Contract, two examples, and then write the code. Remember: you WILL need to make use of the distance function you just wrote!
When you’re done, type it into your game, underneath distance.

Now that you have a function which will check whether two things are colliding, you can use it in your game! For extra practice, You can also implement collision detection into this Pyret Ninja Cat game. This is the program we’ll be altering for this lesson, as an example. In Ninja Cat, when the cat collides with the dog, we want to put the dog offscreen so that he can come back to attack again.

Investigate

Out of the major functions in the game (next-state-tick, draw-state, or next-state-key), which do you think you’ll need to edit to handle collisions, changing the GameState when two characters collide?

We’ll need to make some more if branches for next-state-tick.

Start with the test: how could you check whether the cat and dog are colliding? Have you written a function to check that?
What do the inputs need to be?
How do you get the playery out of the GameState? playerx?
How do you get the dangerx out of the GameState? dangery?

if is-collision(
  g.playerx,
  g.playery,
  g.dangerx,
  g.dangery):   ...result...

Remember that next-state-tick produces a GameState, so what function should come first in our result?

if is-collision(
  g.playerx,
  g.playery,
  g.dangerx,
  g.dangery):
game(
  ...playerx...,
  ...playery...,
  ...dangerx...,
  ...dangery...,
  ...dangerspeed...
  ...targetx...
  ...targety...
  ...targetspeed...)

And what should happen when the cat and dog collide? Can you think of a number that puts the dog off the screen on the left side? What about the dog’s y-coordinate? We could choose a number and always place it at the same y-coordinate each time, but then the game would be really easy! To make it more challenging, we’d like the dog to appear at a random y-coordinate each time it collides with the cat. Thankfully, Pyret has a function which produces a random number between zero and its input:

# num-random :: Number -> Number

if is-collision(
  g.playerx,
  g.playery,
  g.dangerx,
  g.dangery):
game(
  g.playerx,
  200,
  num-random(480),
  0,
  0,
  g.targetx,
  g.targety,
  g.targetspeed)

Collision detection must be part of the next-state-tick function because the game should be checking for a collision each time the GameState is updated, on every tick. Students may assume that draw-state should handle collision detection, but point out that the Range of draw-state is an Image, and their function must return a new GameState in order to set the locations of the characters after a collision.

Once you’ve finished, write another branch to check whether the player and the target have collided. Challenges:

Change your first condition so that the danger gets reset only when the player and danger collide AND the cat is jumping. (What must be true about the player’s y-coordinate for it to be jumping?)
Add another condition to check whether the player has collided with the danger while the player is on the ground. This could be a single expression within next-state-tick, or you can write a helper function called game-over to do this work, and use it in other functions as well (maybe the GameState is drawn differently once the game is over.)
