Here are the ages of different cats at the shelter: 1, 7, 1, 1, 2, 2, 3, 1, 5, 7
1 How many cats are represented in this sample?

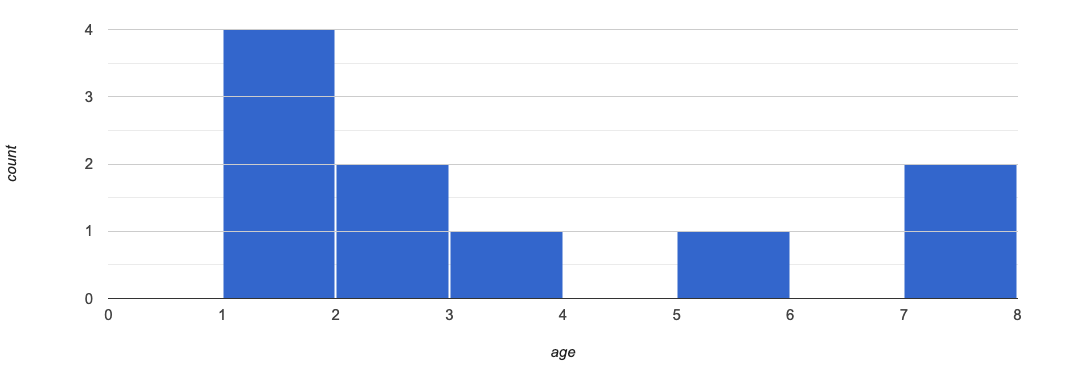

The distribution of these ages is shown in the histogram below:
2 Describe the shape of this histogram.
3 What is the mean age of the cats in this dataset?
4 How many cats are 1 year old? 2 years old? Fill in the table below. The first column has been done for you.
age |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
count |
4 |
5 Draw a star to locate the mean on the x-axis of the histogram above.
6 For each cat in the histogram above, draw a horizontal arrow under the axis from your star to the cat’s interval, and label the arrow with its distance from the mean. (For example, if the mean is 3 and a cat is in the 1yr interval, your arrow would stretch from 1 to 3, and be labeled with the distance "2")
To compute the standard deviation we square each distance and take the average, then take the square root of the average.
7 We’ve recorded the ages (N=10) shown in the histogram above in the table below, and listed the distance-from-mean for the four 1-year-old cats for you. As you can see, 1 year-olds are 2 years away from the mean, so their squared distance is 4. Complete the table.
age of cat |
1 |
1 |
1 |
1 |
2 |
2 |
3 |
5 |
7 |
7 |
distance from mean |
2 |
2 |
2 |
2 |
||||||
squared distance |
4 |
4 |
4 |
4 |
8 Add all the squared distances. What is their sum?
9 There are N=10 distances. What is N-1? Divide the sum by N-1. What do you get?
10 Take the square root to find the standard deviation!
