Find the values described by the expressions below each graph.

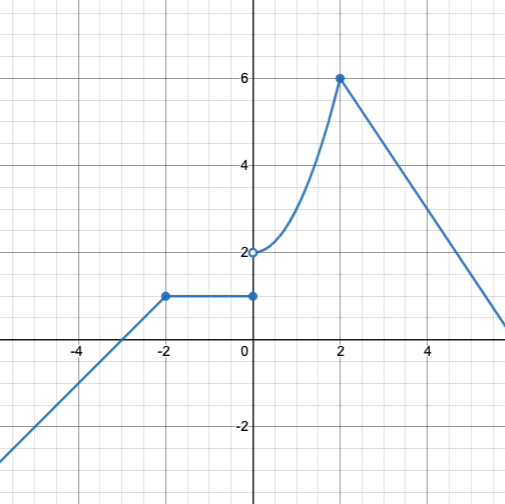

graph: piecewise function with 4 separate curvy and linear sections. A diagonal line slopes upwards from (-6, -3) to a solid point at (-2, 1). From there the line becomes horizontal until a solid endpoint at (0,1). A curve begins at a hollow endpoint of (0,2) and bends upward to a solid endpoint at (2, 6). From there the line slopes diagonally down to the right through (4,3).

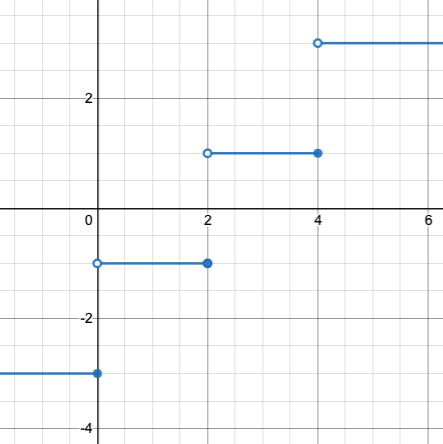

graph: piecewise function with 4 separate linear sections. One enters from the left edge, terminating at a solid endpoint at (0, -3). The next goes from a hollow endpoint at (0, -1) to a solid endpoint at (2, -1). The next goes from a hollow endpoint at (2,1) to a solid endpoint at (4,1). The last goes to the right from a hollow endpoint at (4,3).

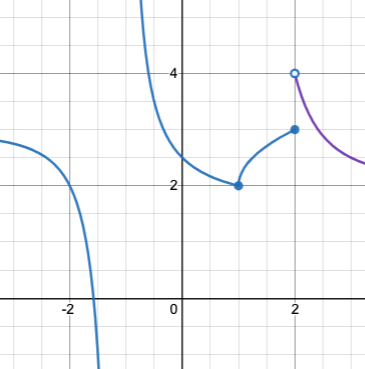

graph: piecewise function with 4 curvy sections. The first curves downward from the left edge to the bottom edge through (-2.5, 0.5), (-2,2) (-1.5, -1). The next curves downward from the top through (-0.5, 3.5) (0, 2.5) to a solid endpoint at (1,2). From there it curves upward toward a solid endpoint at (2,3). The final curve slopes downward toward the right edge beginning at a hollow endpoint at (2,4) and passing through (3,2.5)

𝑓(0) = 1

𝑔(1) =

𝒽(1) =

𝑓( - 2) =

𝑔(4) =

𝒽(2) =

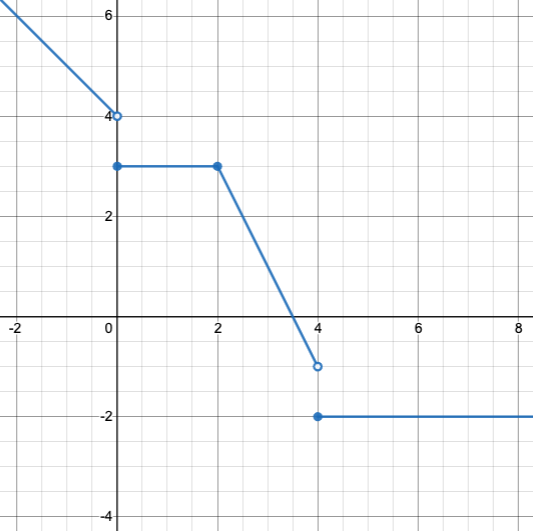

graph: piecewise function composed of 4 linear sections. The first comes in from the top left, passes through (-2,6) and ends at a hollow dot on (0,4). The second runs horizonatally from a solid endpoint at (0,3) to (2,3). From there a line runs diagonally downward toward a hollow endpoint at (4,-1). The final segment runs horizontally toward the right edge beginning at a solid endpoint at (4, -2).

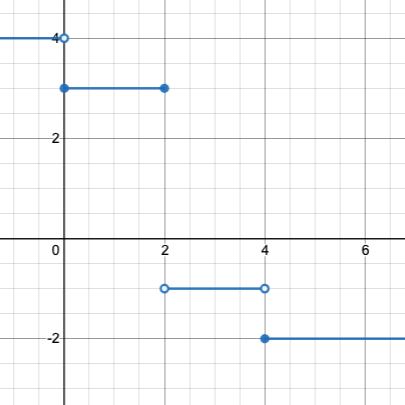

graph: piecewise function with 4 separate linear sections. One enters from the left edge, terminating at a hollow endpoint at (0, 4). The next goes from a solid endpoint at (0, 3) to a solid endpoint at (2, 3). The next goes from a hollow endpoint at (2,-1) to a hollow endpoint at (4,-1). The last goes to the right from a solid endpoint at (4,-2).

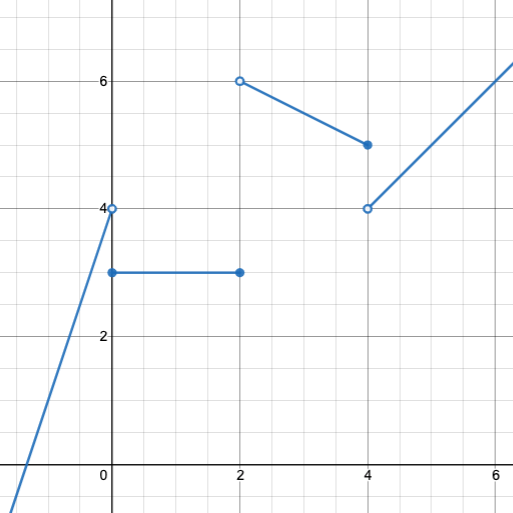

graph: piecewise function with 4 separate linear sections. One enters from the left edge, passes through (-1,1) and terminates at a hollow endpoint at (0, 4). The next goes from a solid endpoint at (0, 3) to a solid endpoint at (2, 3). The next goes from a hollow endpoint at (2,6) to a solid endpoint at (4,5). The last begins at a hollow endpoint at (4,4) and passes up to the right through (6,6).

𝑗(0) =

𝑘(1) =

𝑚(2) =

𝑗(4) =

𝑘(3) =

𝑚(4) =

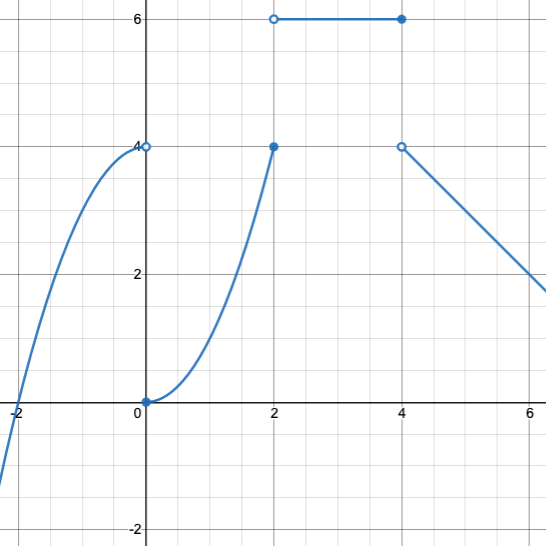

graph: piecewise function with 4 separate curvy and linear sections. One enters from the left edge, curving upward through (-2,0) (-1,3) ending at hollow endpoint (0,4). The next begins at a solid endpoint at (0,0) and curves upward to (2,4). The next goes horizontally from a hollow endpoint at (2,6) to a solid endpoint at (4,6). The last goes down to the right from a hollow endpoint at (4,4) through (6,2).

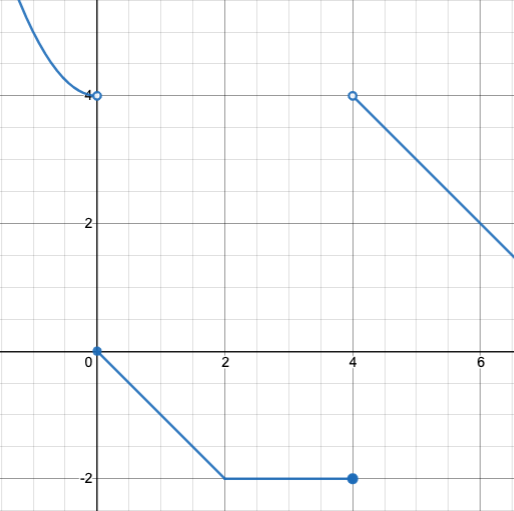

graph: piecewise function with 4 separate curvy and linear sections. One enters from the top edge, curving downward through (-1,5) to a hollow endpoint at (0,4). The next begins at a solid endpoint at (0,0) and slopes diagonally downward to (2,-2). From there it runs horizontally to a solid endpoint at (4,-2). The last section goes down to the right from a hollow endpoint at (4,4) through (6,2).

graph: piecewise function with 4 separate curvy and linear sections. One enters from the left edge, curving downward through (-1,5) to a hollow endpoint at (0,4). The next begins at a solid endpoint at (0,0) and slopes diagonally upward to a hollow endpoint at (2,6). The next slopes diagonally downward from a solid endpoint at (2,0) to a solid endpoint at (4,-2). The last goes down to the right from a hollow endpoint at (4,4) through (6,2).

𝑛(2) =

𝑣(3) =

𝑤(1) =

𝑛(5) =

𝑣(4) =

𝑤(4) =
