Students watched 5 videos, and rated them on a scale of 1 to 10. For each video, their ratings were used to generate box plots and histograms.
Match each box plot to the histogram that displays the same data.

Box plot with a long left whisker, followed by 2 boxes and a right whisker that are all of equal size

1

A

A histogram with 6 bins. The middle 2 bars are 3 times as tall as the rest.

Box plot with 2 short whiskers of equal size and 2 wider boxes of equal size

2

B

a histogram with 10 bins, equal in height

Box plot with a long right whisker. The left whisker and 2 boxes are all about equal in size.

3

C

a histogram with 9 bins. The first, sixth and seventh are empty. The second, fifth and eighth and ninth are 1 unit tall. The third and fourth are 3 times as tall as the others.

Box plot with 2 equal-size long whiskers and 2 equal-size smaller boxes

4

D

a histogram with 9 bins. The first, fourth and fifth are empty. The second, third, sixth and ninth are 1 unit tall. The seventh and eighth are 3 times as tall as the others.

Box plot whose whiskers and boxes all span equal distances

5

E

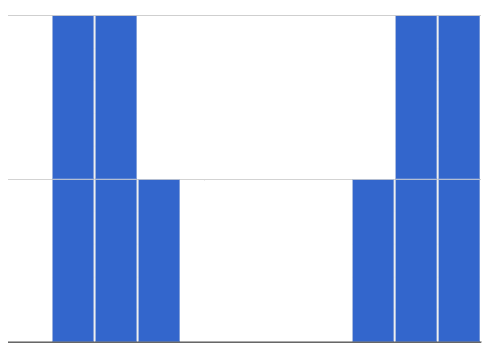

a histogram with a big gap in the middle. The left-most two bins and right-most two bins are two units tall. Immediately toward the center from each of those pairs of bins is a bin that is one unit tall.
