For this page, you’ll need the Countries of the World Starter File open on your computer. If you haven’t already, select Save a Copy from the "File" menu to make a copy of the file that’s just for you. The columns in this dataset are described below:

  • country - name of the country

  • gdp - total gross domestic product of the country

  • population - number of people in the country

  • pc-gdp - "per-capita gdp": the average GDP per-person

  • has-univ-healthcare - indicates if the country has universal healthcare

  • median-lifespan - the median life expectancy of people in the country

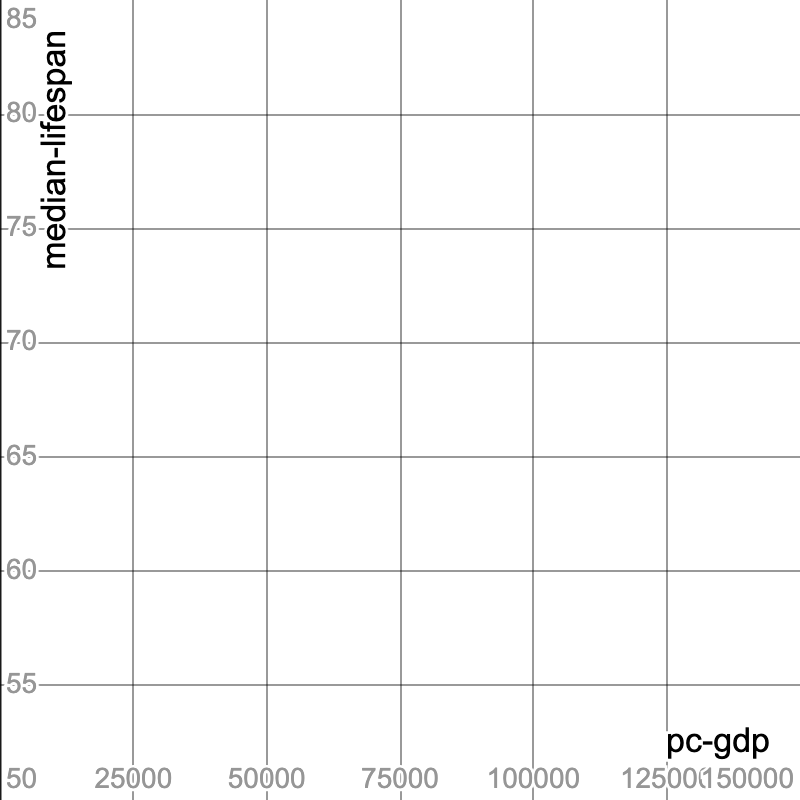

1 Make a scatter plot showing the relationship between pc-gdp and median-lifespan. Sketch the shape of the plot below. An empty graph for sketching on

2 What do you Notice?

3 What do you Wonder?

4 Are there any countries that stand out? Why or why not?

5 Suppose a wealthy country is suffering heavy causalties in a war. Draw a star on the plot, showing where you might expect it to be.

6 Do you think you see a relationship? If so, describe it. Is it linear or nonlinear? Strong or weak?

Stop here! We’ll continue after some discussion.

Fitting Models

For each question below: (1) explore in Fitting Wealth-v-Health (Desmos); (2) define and fit your model in Pyret (the starter file already contains sample functions for you to change, called linear1, quadratic1, and exponential1!). Then write the model and the 𝑅2.

7 Find the best linear model you can, using the first slide in the Desmos activity or lr-plot in the Countries of the World Starter File.

𝑓(𝑥) = slope (m)x + y-intercept (b)

R2

8 Find the best quadratic model you can, using the second slide (quadratic) in the Desmos activity.

𝑓(𝑥) =quadratic coefficient (a)(𝑥 −vertex (h))2 +vertical shift (k)

R2

9 Find the best exponential model you can, using the third slide (exponential) in the Desmos activity.

𝑓(𝑥) =initial value (a)(growth factor (b)𝑥) + vertical shift (k)

R2

10 Are any of these models a good fit for this data? Why or why not?
